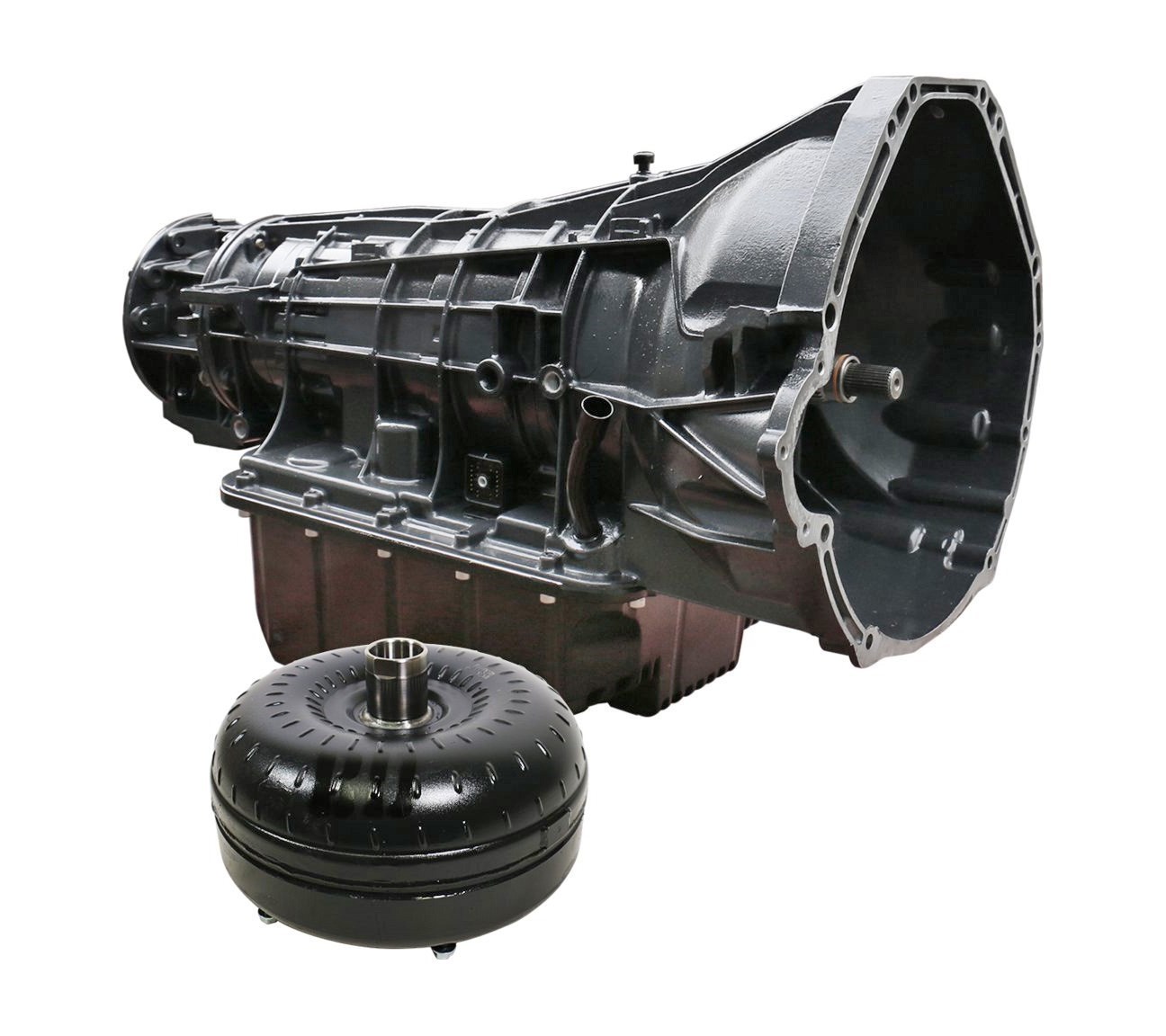

1064482SM BD Diesel TowMaster 5R110 Transmission & Converter Package - Ford 2005-2007 2WD

SKU: BD1064482SM
Mftr. Part#: 1064482SM
UPC: 990011407021
Manufacturer: BD Diesel Performance
Delivery date: Manufacturer Build On Demand - Contact For ETA
Increase the durability of your drivetrain with BD's heavy duty 5R110 transmission, matched with an enhanced stall billet Torque Converter, dyno tested together in a complete package for your 2005-2007 Ford Powerstroke 6.0L 2WD turbo diesel. A $2400.00 refundable core charge will apply.

PRODUCT DETAILS (click to expand)

PRODUCT SPECS (click to expand)

PRODUCT OPTIONS

*

Since this is a remanufactured product, a temporary "core charge" is added up front until we receive your original unit back. Once received and inspected, the charge will be reversed back to you. The core charge will be added to the price below. (Required)

$6,565.00

When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission and converter that will stand up to your diesel’s power and torque demands, the clear choice is BD.

Transmission Overview

  • Increase the durability of your drivetrain
  • BD aluminum HD deep pan, increases oil capacity by 6qt
  • Upgraded sump filter
  • Replace plastic pressure plugs in valve body with aluminum
  • Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
  • Reworked front pump
  • Clutch Count: COAST CLUTCH 3
  • Clutch Count: FORWARD 4
  • Clutch Count: LOW REVERSE 6
  • Clutch Count: INTERMEDIATE 5 (67% increase over stock)
  • Clutch Count: DIRECT 6 (20% increase over stock)
  • Clutch Count: OVERDRIVE 5 (67% increase over stock)
  • Each transmission is dyno tested

Torque Converter Overview

  • Enhanced Stall - Street/Towing applications
  • Torque multiplying cast aluminum stators
  • Lower rpm response than the stock converter
  • More efficient operation
  • Less heat and better fuel economy
  • Stamp-forged steel front cover
  • Furnace-brazed fins
  • Up to triple the amount of lock-up clutch material

Warranty

Parts
  • 36-Months
  • 150,000 Miles
Labour
  • 24,000 miles
  • 12-Months
Note
  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
  • Transmission must be installed by authorized dealer or warranty is VOID
